产品详情
产品优势
1、PUR免清洗胶锅
快速切换不同颜色胶水，PUR封边具有胶线细
粘贴牢固，美观、防霉、防潮等特点。
Quickly switch between different colors of glue, PURedge sealing has fine glue lines.Sticky. beautifulanti-mildew. anti-moisture and other features
2、齐头机构
双立柱齐头，齐头齐尾互不关联，减少共振提升质量。
The two columns are aligned front and back, and their ends
are not connected with each other, which helps reduce
resonance.Improve the quality.
3、四刀跟踪机构
配备4组高速电机，可实现多种倒角修边工艺。
Equipped with 4 high speed motors and satisfies for
different processes.
技术参数

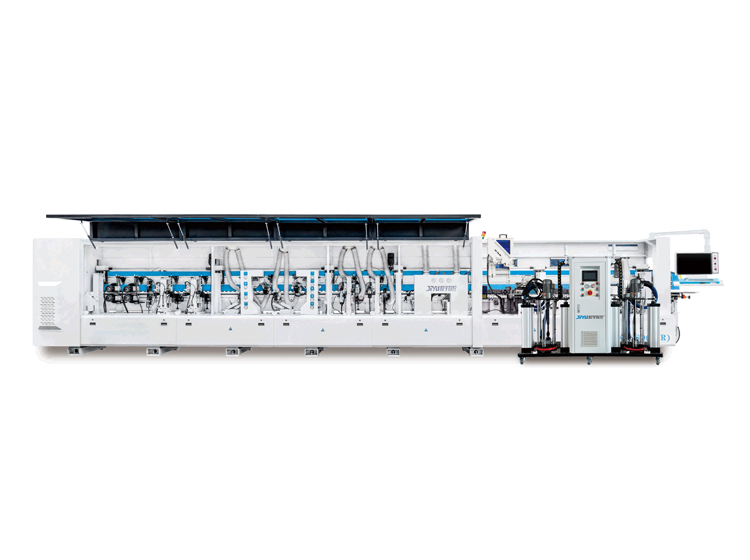

| 机器型号Model | JY-968JKGSSQ(PUR) |
|---|---|
| 机器尺寸Machine size | 10800*900*1920mm |
| 工作气压Working pressure | 0.6Mpa |
| 总功率Total power | 28KW |
| 进给速度Feed rate | 20-28m/min |
| 电动升降Electric lift | 0.37kw |
| 板料厚度Sheet thickness | 0-60mm |
| 板料长度Sheet length | ≧120mm |
| 板料宽度Sheet width | ≧60mm |
| 封边带厚度Edge band thickness | 0.4-3mm |
