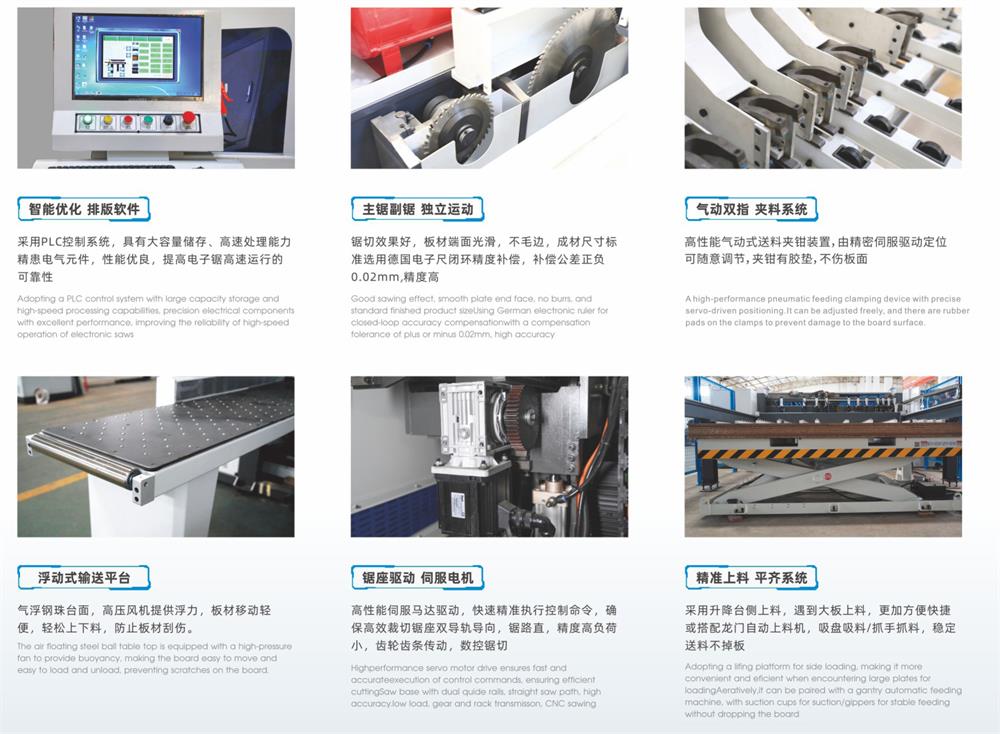

产品优势
1、重型机架稳定高效
重型机架结构稳定，每台机器均通过72小时高强度测试，机架经过退火处理，长期使用不变形。最大锯切速度120m/min，
1天8小时可加工400~800张板材，高颜值，高效率
The heavy-duty frame structure is stable, and each machinehas passed 72 hours of high-strength testing.
The frame hasundergone annealing treatment and will not deform afterlong-term use.
The maximum sawing speed is 120m/min, andit can process 400-800 sheets in 8 hours per day.
It has highappearance value and high efficlency.
2、液压台自动上料
根据加工信息，升降台自动后上料，把所需数量板件推至加工位，红外线定位上板高度，操作方便快捷。
According to the processing information, the lifting tableautomatically feeds back.
pushing the required number ofplates to the processing position, and infrared positioning
ofthe helght of the upper plate, making the operationconvenient andfast
3、板材旋转功能
切割过程中根据需要轻松旋转90度
提高整体工作效率。
It can be easily rotated 90 degrees during the cuttingprocess as needed.Improve overall work efficiency.

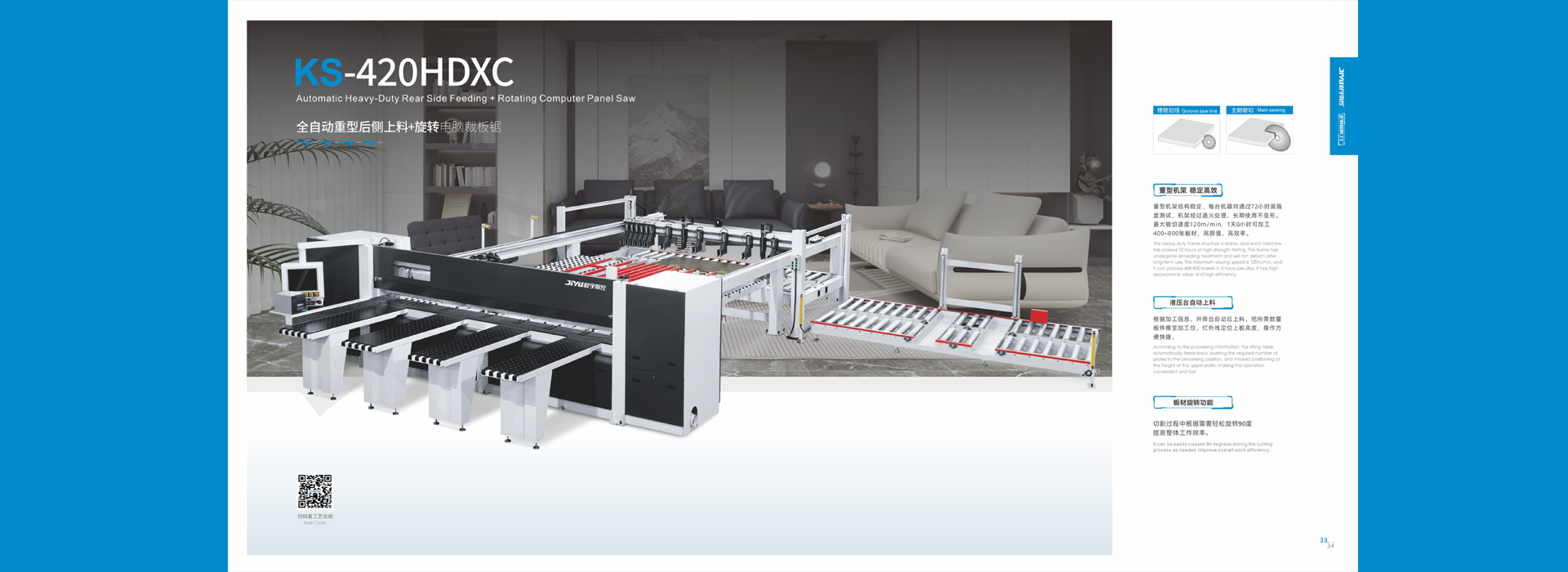

| 机器型号Model | KS-420HDXC |
|---|---|
| 锯切长度Cutting length | 4200mm |
| 锯切宽度Sawing width | 4200mm |
| 锯切厚度Sawing thickness | 120mm |
| 定位方式Targeting | 自动 |
| 定位精度Positioning accuracy | ±0.02mm |
| 锯切精度Sawing accuracy | +0.15mm |
| 主锯电机功率Main saw motor power | 22kw |
| 主锯片外径Main saw blade outer diameter | 380-480mm |
| 主锯轴直径Main saw shaft diameter | 75mm |
| 主锯转速Main saw speed | 4100r/min |
| 锯车牵引电机功率Saw car traction motor power | 1.8kw |
| 机械手伺服电机Robot servo motor | 1.8kw |
| 副锯电机功率Vice saw motor power | 2.2kw |
| 副锯片外径Vice saw blade outer diameter | 200mm |
| 副锯轴直径Vice saw shaft diameter | 50mm |
| 副锯转速Sub saw speed | 6200/min |
| 送料速度Feeding speed | 0-90m/min |
| 锯切速度Sawing speed | 0-80m/min |
| 回程速度Return speed | 0-120m/min |
| 空气压力Air pressure | 0.6-0.8MPA |
| 离心风机Centrifugal fan | 5kw |
| 总功率Total power | 41.55kw |
